Introduction of BF500D Retrofit MBR Membrane
Advanced Hollow Fiber Membrane for Membrane Bioreactor Systems
The Blufox BF500D Retrofit MBR Membrane represents a significant advancement in membrane bioreactor (MBR) technology, engineered as a high-performance, drop-in replacement for the industry-standard ZeeWeed 500D membrane system. This hollow fiber membrane delivers exceptional filtration precision, operational efficiency, and extended service life for municipal and industrial wastewater treatment applications worldwide.
Manufactured with premium-grade Reinforced PVDF (polyvinylidene fluoride), the BF500D achieves superior mechanical strength, porosity, and hydrophilic properties that ensure consistent performance across diverse operating conditions.
Product Overview
Technology Foundation
The BF500D employs an outside-to-inside hollow fiber configuration that optimizes filtration efficiency while minimizing fouling potential. The membrane’s engineered pore structure (0.04 µm) provides complete biomass retention, achieving >98% TSS removal and >90% COD removal, producing effluent quality suitable for water reuse, industrial processes, and environmental discharge compliance.
Unlike conventional MBR membranes, the BF500D incorporates hydrophilized surface modification that reduces organic adhesion and extends cleaning intervals, resulting in lower operational costs and reduced maintenance frequency throughout the membrane’s service life.
Design Philosophy
Blufox engineered the BF500D with three core principles:
Compatibility
Direct retrofit capability with existing ZeeWeed 500D installations without system modification
Performance
Enhanced flux rates and chemical resistance exceeding industry benchmarks
Sustainability
Energy-efficient operation with reduced air scouring requirements and backwash water consumption
100% Replace Zeeweed 500D MBR Membrane
Start With Low MOQ, 100% High Quality Products
3 Years Warranty & Up to 10 Years Life Span
Perfect Fit
Cost Effective
Superior Performance
Trusted Quality
Comprehensive Technical Specifications BF500D MBR Membrane
Model | BF 500D (430) | BF 500D (370) | BF 500D (340) |
Nominal surface area | 40.9m² | 34.4m² | 31.6m² |
Dimensions (H*L*W) | 2,198*844*49mm | 2,198*844*49mm | 2,198*844*49mm |
Type | Submersible, for MBR | ||
Membrane Material | Reinforced PVDF | ||
Membrane gluing-in type | Clusters with confining layer | ||
Nominal size of membrane pores | 0.04 µm | ||
Membrane surface properties | Non-ionic, hydrophilic | ||
Average initial permeability at 20 0С and 51 L/h | 200 L/(*m2 *bar) | ||
Flux at water parameters according to Table 2 | 20 | ||
Number of fibers per module | 2,860 pcs | ||
Open fiber length | 1,577 mm | ||
Fiber diameter (outer / inner) | 2.0 mm / 0.9 mm | ||
Percolation path | From outside to inside | ||
Strength, N | ≥ 200 | ||
Trans-membrane pressure (TMP) range | -55 to 55 kPa | ||
Maximum operating temperature | 40 ˚С | ||
pH operating range | 5 to 9.5 | ||
Maximum cleaning temperature | 40 ˚С | ||
pH range for cleaning | 2 to 10.5 (< 30 ˚С) | ||
Maximum concentration of chlorine | 1,000 ppm | ||
Municipal Wastewater Treatment
The BF500D excels in municipal sewage treatment applications, providing:
Compact facility design: Replaces secondary clarifiers and tertiary filtration, reducing footprint by 40–50%
Consistent effluent quality: Achieves <1 NTU turbidity and <5 mg/L TSS regardless of influent fluctuations
Sludge reduction: Higher biomass concentration (10–15 g/L vs. 3–5 g/L for conventional activated sludge) reduces sludge production by 30–40%
Regulatory compliance: Meets stringent discharge standards for BOD, COD, TSS, and nutrients
Typical Municipal Applications
Small to medium municipalities (500–50,000 population equivalent)
Decentralized wastewater treatment systems
Resort and hospitality wastewater treatment
Institutional facilities (universities, hospitals, military bases)
Industrial Wastewater Treatment
The BF500D addresses diverse industrial wastewater challenges:
| Industry | Wastewater Characteristics | BF500D Advantage |
|---|---|---|
| Textile & Dyeing | High COD, color, variable pH | High COD removal (>90%), chemical resistance to pH extremes |
| Pharmaceutical | Refractory organics, antibiotics, solvents | Complete solids retention, virus removal >99% |
| Food & Beverage | High BOD, fats, oils, grease | Consistent quality for process water reuse |
| Chemical Manufacturing | Toxic compounds, heavy metals | Robust chemical resistance, complete SS retention |
| Pulp & Paper | High TSS, lignin, color | Excellent turbidity removal, low fouling |
| Landfill Leachate | High ammonia, COD, heavy metals | High biomass concentration, nitrification support |
| Hospital & Healthcare | Pathogens, pharmaceuticals, chemicals | >99.99% coliform removal, virus retention |
| Automotive | Oils, metals, surfactants | Oil-grease separation, consistent performance |
Exploring BF 500D: A Closer Look at Quality and Precision
Structured for Success: BF 500D Components
The BF 500D is thoughtfully constructed with 2 headers and 8 line boxes. This strategic configuration optimizes flow distribution and maximizes membrane surface area, ensuring efficient and effective wastewater treatment.

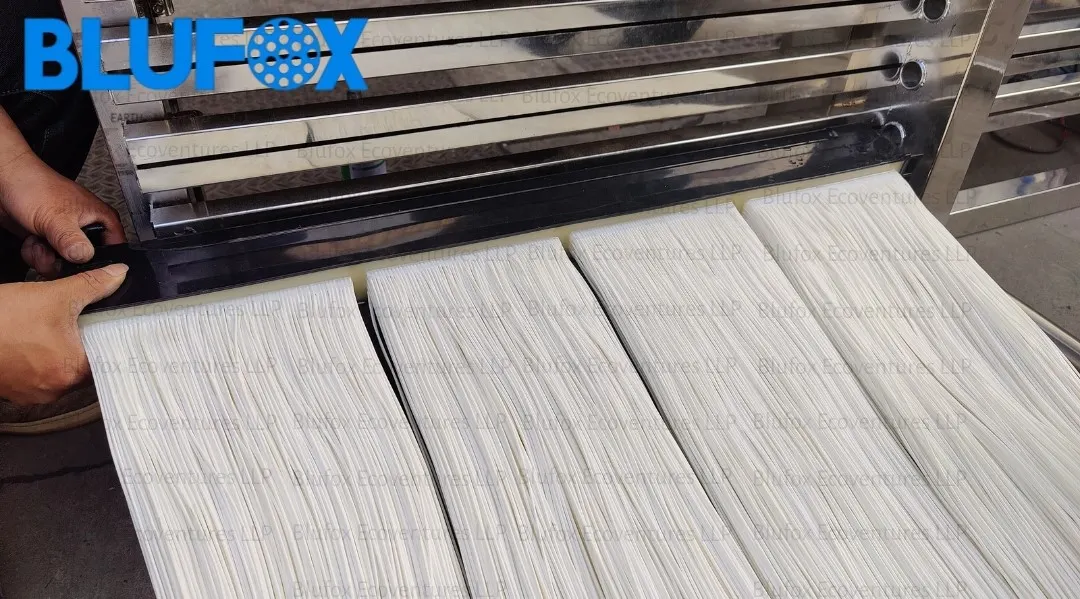

Quality Craftsmanship: BF 500D Production
Every BF 500D MBR Membrane is crafted with precision and care at our Surat facility, ensuring the highest quality in every product.

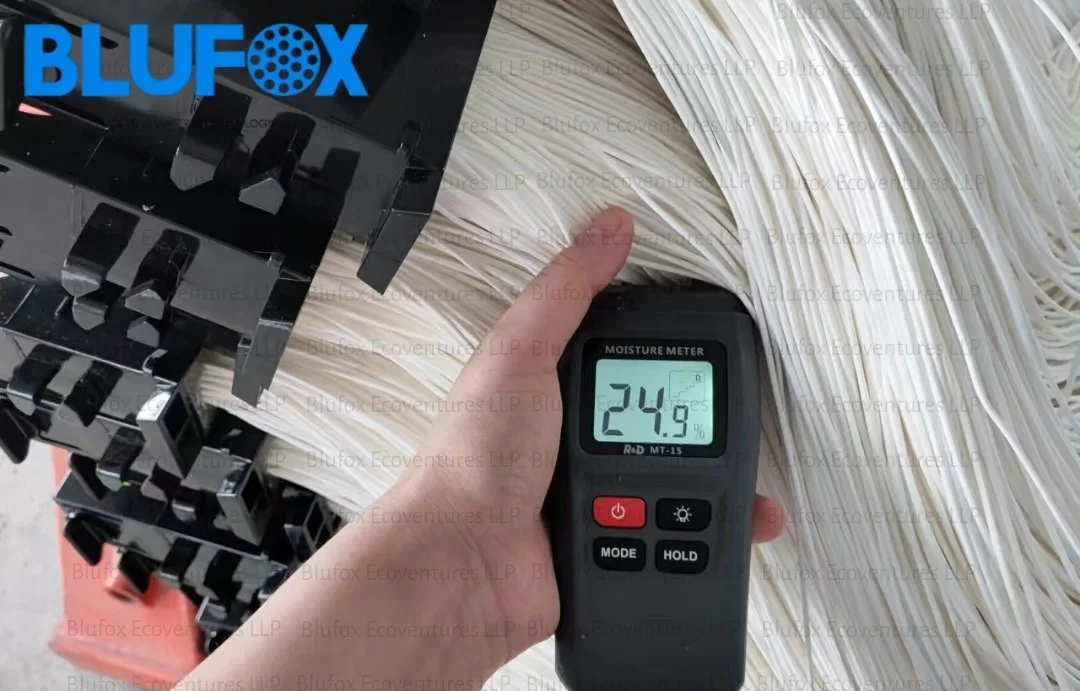

Superior Fiber Design
BF 500D MBR Membrane is designed to match with Zeeweed 500D. Except the membrane header, we have maximized the fiber appearance identical to the Zeeweed 500D MBR Membrane.

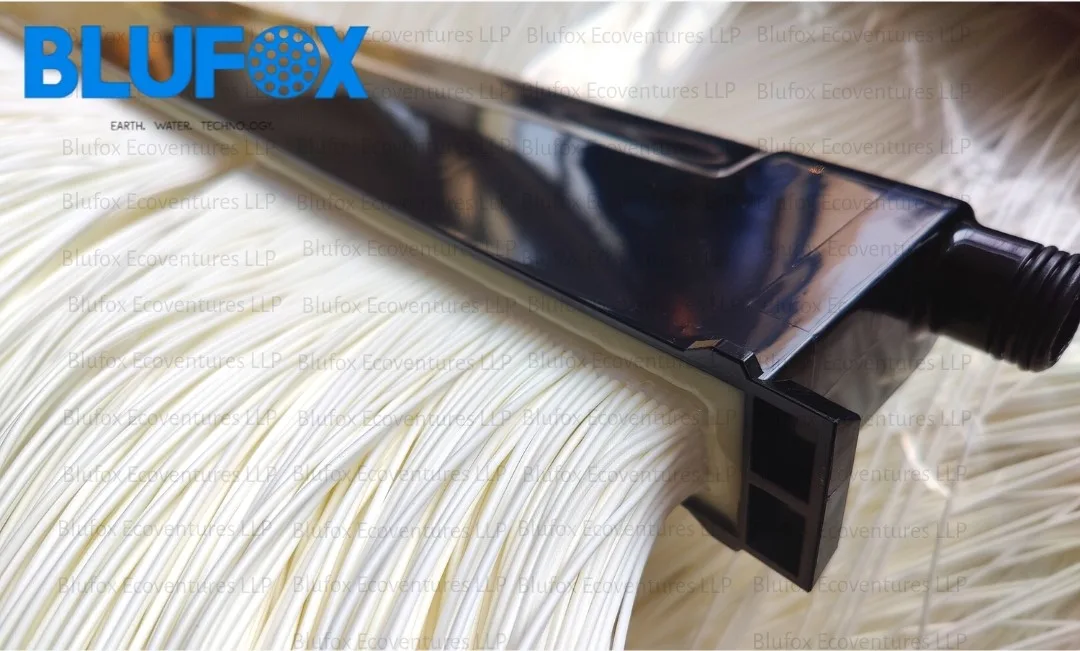

Close-up View: BF 500D
Take a closer look at our BF 500D in this detailed shot. Every element of our product is designed with precision, ensuring the best performance in all your water treatment needs.

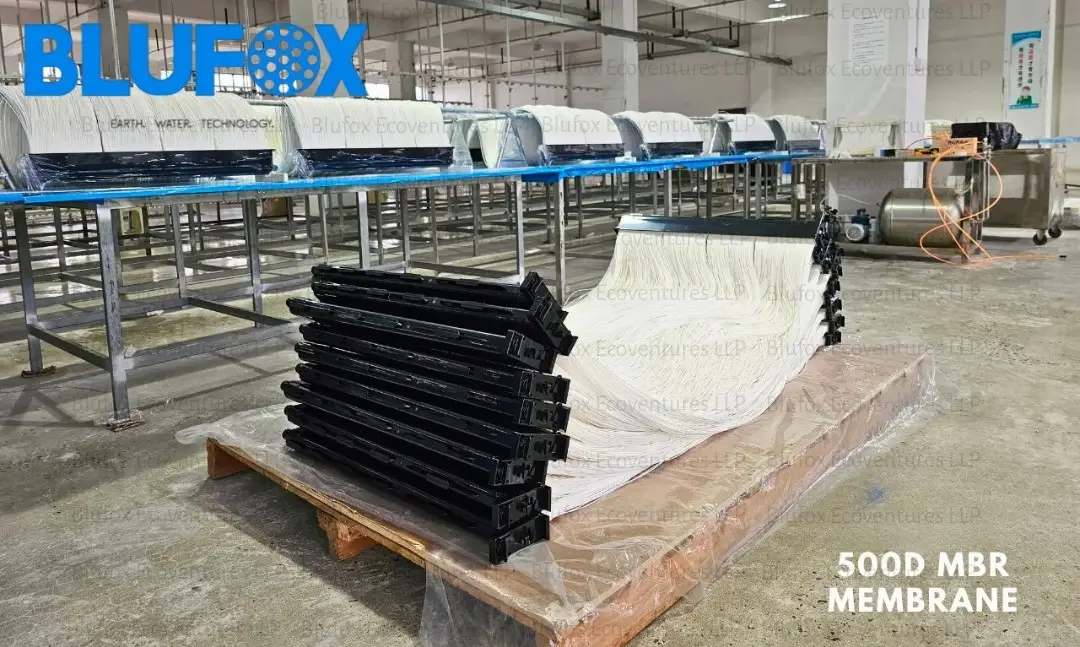

Precision Made: The Finished BF 500D
Our commitment to quality is evident in every BF 500D we produce. Each finished unit showcases superior craftsmanship and high-quality materials — evident at first glance. Trust Blufox for reliable, high-performance MBR solutions.

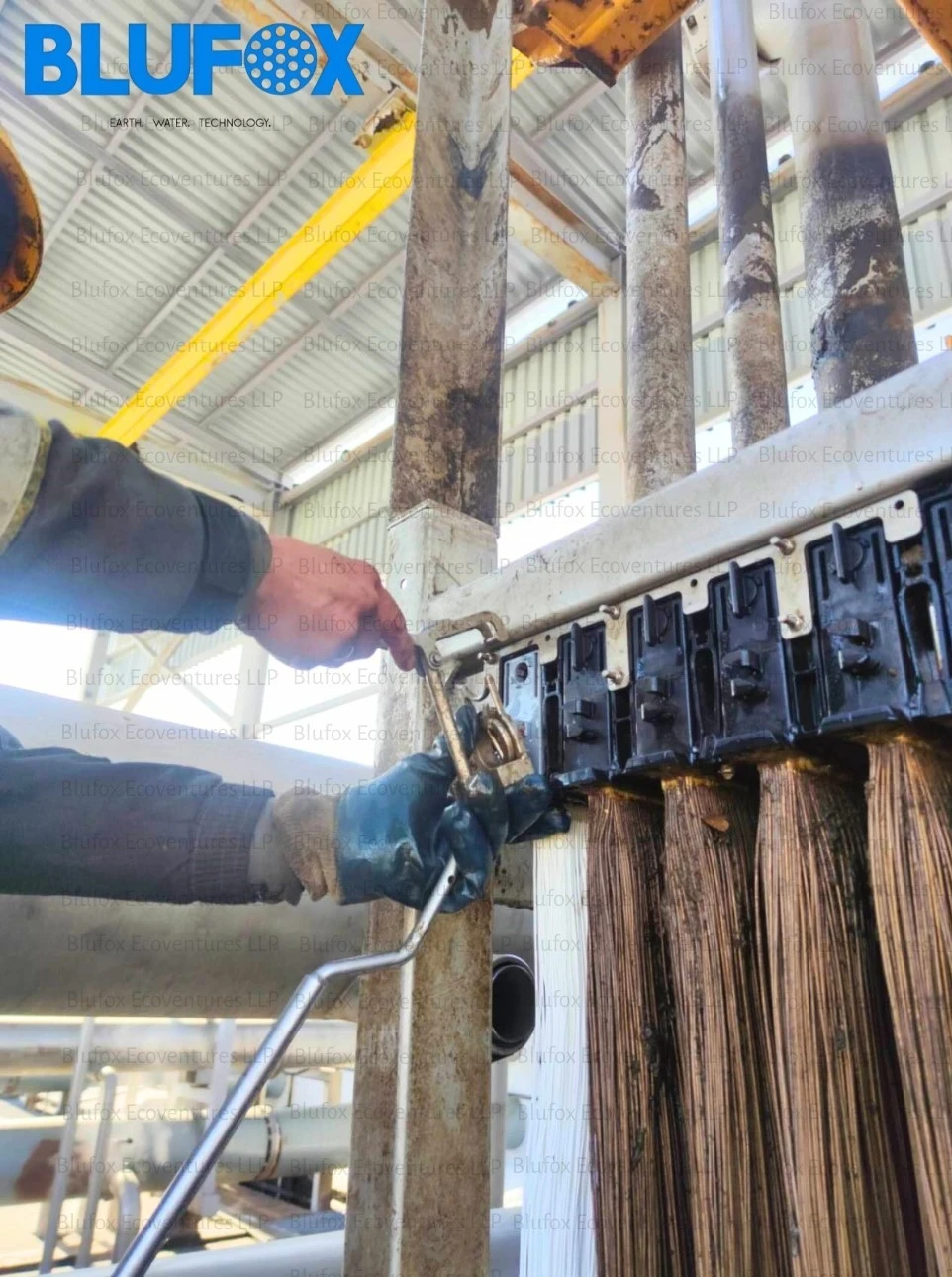

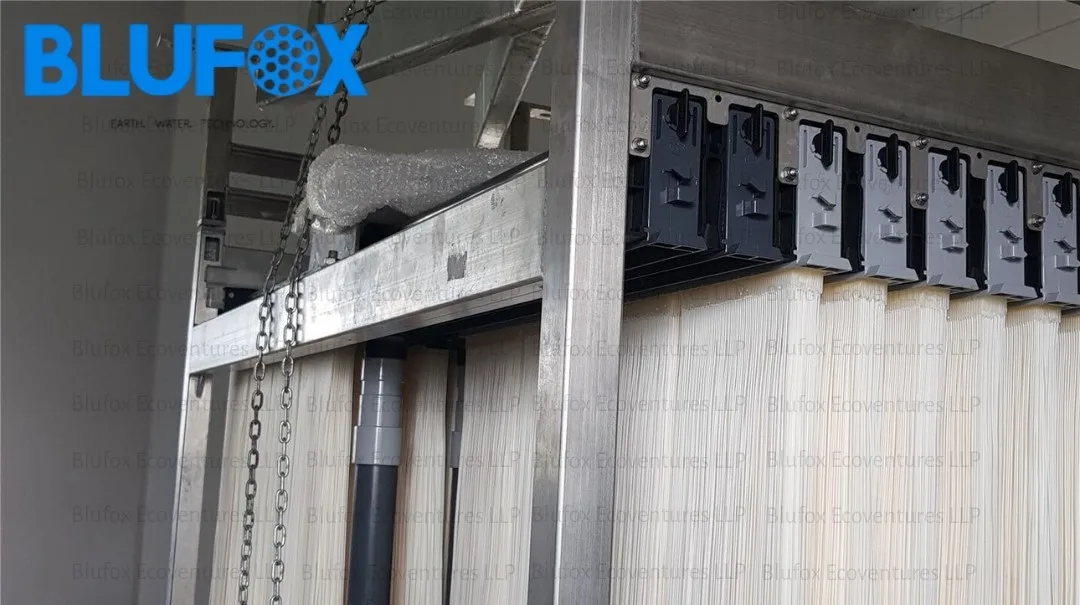

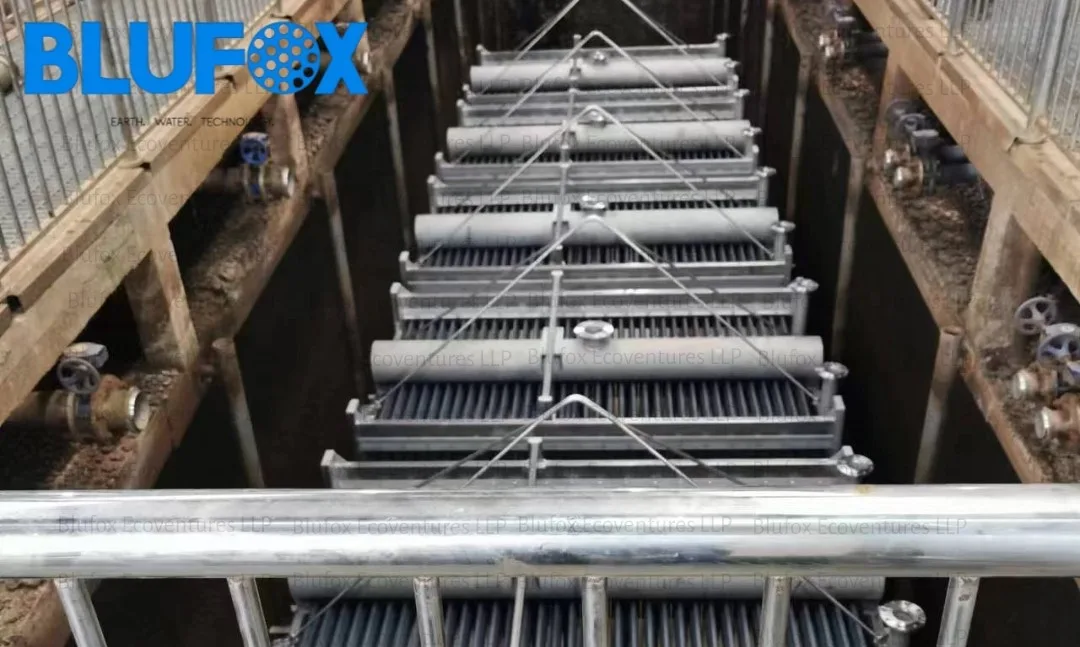

In Action: BF 500D Seamless Installation
The BF 500D membrane module is designed for seamless installation into Zeeweed 500D cassettes. Our precision engineering ensures a perfect fit every time, simplifying the installation process and ensuring optimal performance. This compatibility allows for easy replacement and upgrades — making BF 500D the most reliable retrofit choice for your MBR system.
Performance Advantages
Enhanced Flux Performance
The BF500D achieves 10–30 LMH operating flux, significantly higher than conventional MBR membranes (typically 15–25 LMH). This superior flux rate enables:
Reduced membrane area requirements (15–20% smaller footprint)
Higher treatment capacity per module
Lower capital expenditure for new installations
Modular scalability for existing plant expansions
Extended Service Life
Engineered with reinforced PVDF, the BF500D delivers 4–5 years operational lifespan under standard conditions, compared to 3–4 years for competing membranes. Key factors contributing to longevity:
Superior mechanical strength (≥20 MPa tensile strength)
Enhanced chemical resistance (5,000 ppm NaClO tolerance)
Stable pore structure under cycling conditions
Reduced fiber breakage risk during cleaning cycles
Energy Efficiency
The BF500D’s optimized design reduces energy consumption through:
Reduced air scouring requirements: 0.15–0.30 Nm³/m²·h vs. 0.25–0.40 Nm³/m²·h for conventional membranes
Lower backwash water consumption: 3–5% of permeate vs. 5–8% for standard membranes
Optimized TMP operating range: Sustained performance at lower vacuum pressures
Reduced pumping energy: Lower transmembrane pressure requirements
Overall energy savings of 15–25% compared to traditional MBR systems.
Advanced Fouling Resistance
The hydrophilized PVDF surface modification provides:
Reduced organic adhesion and biofilm formation
Extended cleaning intervals (3–6 months vs. 2–4 months)
Faster recovery after chemical cleaning
Consistent flux performance over extended periods
Lower irreversible fouling rates (<5% per year)
Complete Retrofit Compatibility
The BF500D is engineered as a 100% compatible replacement for ZeeWeed 500D systems:
Identical module dimensions and connection points
Same operating parameters and cleaning protocols
No modifications required to existing infrastructure
Seamless integration into operational plants
Frequently Asked Questions About BLUFOX BF 500D MBR Membrane
Can BF 500D MBR Membrane replace Zeeweed 500D membrane?
Yes, BF 500D MBR Membrane is designed as a direct replacement for the Zeeweed 500D membrane. It matches the Suez 500D in form, fit, and function, ensuring a seamless transition without any system modifications.
How does BF 500D compare to Zeeweed 500D?
The BF 500D is engineered to be a direct replacement for the Suez 500D, offering equivalent performance, durability, and significantly better cost-effectiveness — with the added advantage of local availability and faster delivery.
What is the typical lifespan of the BF 500D in various treatment scenarios?
The BF 500D is built for durability and long-term performance. For municipal wastewater treatment, the expected lifespan is 8–10 years. For industrial wastewater applications, it is designed to last a minimum of 3–5 years. Actual lifespan may vary based on operating conditions, maintenance practices, and the nature of the wastewater being treated.
Can the BF 500D handle high-strength industrial waste?
Yes. The BF 500D is built to withstand and effectively treat high-strength industrial waste, thanks to its robust construction and advanced hollow fiber filtration design.
What is the maximum flow rate the BF 500D can handle?
The BF 500D is designed to accommodate a maximum flux rate of 20 LMH, making it suitable for a wide range of municipal and industrial applications.
How much does the BF 500D MBR Membrane cost?
Pricing varies based on specific requirements, order quantity, and delivery location. Contact our team directly for an accurate quote. We offer competitive factory-direct pricing with no middlemen. 📞 +91 97278 22279 | 📧 info@blufoxmembranes.com
Does the BF 500D require any special storage conditions?
The BF 500D should be stored in a cool, dry place away from direct sunlight. Detailed storage instructions are provided with every unit at the time of delivery.
How quickly can I receive the BF 500D after placing an order?
Blufox maintains ready stock of the BF 500D, enabling delivery within India in approximately 4 weeks – compared to months of waiting with imported alternatives. Contact us for exact timelines based on your location and order size.
What technical support do you offer for BF 500D installation?
Our experienced technical team offers complete installation guidance, operational troubleshooting, and performance optimization advice. Support is available in English and can be coordinated remotely or on-site as required.
What is the size of the BF 500D MBR Membrane?
The BF 500D is designed to match the exact dimensions of the Suez 500D membrane, ensuring a perfect fit for systems currently using Suez membranes.
- 2198 mm x 844 mm x 49 mm – 40.9m2
- 2198 mm x 844 mm x 49 mm – 34.4m2
- 2198 mm x 844 mm x 49 mm – 31.6m2
Is the installation process for the BF 500D complicated?
No. The BF 500D is designed for easy, hassle-free installation as a direct replacement for the Suez 500D. No system modifications are required.
What types of wastewater can the BF 500D treat?
The BF 500D is versatile and effective across a wide range of wastewater types — including municipal sewage, household waste, and industrial effluents from sectors such as textiles, food processing, pharmaceuticals, and chemical production.
Are there any specific maintenance requirements for the BF 500D?
The maintenance requirements for the BF 500D are identical to those for the original Suez 500D membrane. You can follow the same cleaning, inspection, and handling procedures you are already accustomed to — no retraining required.
How does the BF 500D impact the quality of treated water?
Thanks to its advanced hollow fiber filtration, the BF 500D significantly improves treated water quality, ensuring effluent meets or exceeds applicable regulatory standards.
Can the BF 500D be used in a retrofit project?
Absolutely. The BF 500D is specifically designed for retrofitting existing Zeeweed 500D systems. Its direct compatibility and ease of installation make it the ideal choice for plant upgrades and membrane replacements.
Where can I purchase the BF 500D MBR Membrane?
The BF 500D can be purchased directly from Blufox Ecoventures. Contact us via WhatsApp, phone, or email to place an inquiry or request a quote.
🌐 blufoxmembranes.com | 📞 +91 97278 22279
What kind of support can I expect after purchasing the BF 500D?
Blufox provides comprehensive post-purchase support including technical assistance, installation guidance, and dedicated customer service — ensuring your membrane performs at its best throughout its service life.
What happens if I encounter issues with the BF 500D after installation?
Our dedicated support team is ready to assist with troubleshooting, technical resolution, or replacement as needed. Reach us directly on WhatsApp for the fastest response.
